BIM, MORE THAN A METHODOLOGY

What sets IDEA apart from other companies in its sector is its ability to offer its clients a 360º service.

For IDEA Ingeniería, as a proponent of the BIM methodology since the very beginning, BIM is a human-based work philosophy that promotes collaboration in the integration of real construction models with calculation and simulation models, thus obtaining the closest possible model to reality using the latest technology available.

A solution that combines each and every one of our services: Project Engineering, Recruitment & Outsourcing, Networks, Procurement & Construction, Architecture and Digital Transformation. The main basis of all of them being BIM, each contributing their own added value.

The successful implementation of BIM in IDEA Ingeniería is based on integrating this work methodology based on its three fundamental pillars: people, processes and technology.

The people
One of the fundamental goals of using BIM focuses on promoting effective communication through collaborative environments.
The processes
Effective use of BIM puts the focus on how valuable information and collaborative data management are.
The technology
Combining the strengths of BIM software tools to ensure the resulting solution meets the highest quality standards.

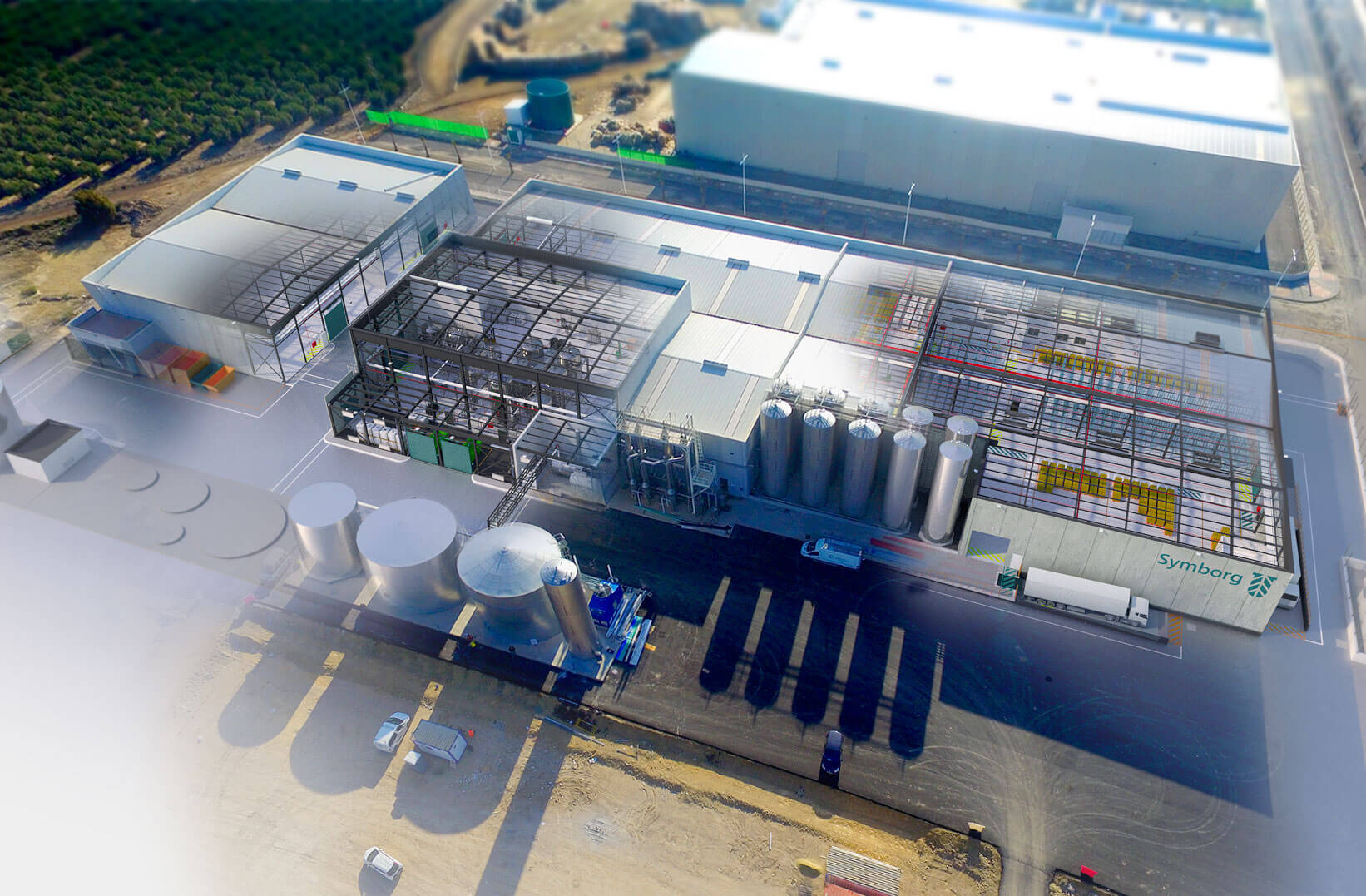

What is BIM?

BIM stands for Building Information Modelling, and is defined as a collaborative working methodology that documents the entire lifetime of a project by means of a three-dimensional digital model. This virtual replica constitutes a large centralised database that facilitates managing the elements throughout all phases of the project.

To this end, the information contained in the BIM model is shared through a virtual space known as the Common Data Environment (or CDE) to make this information accessible to all the agents involved in the project.

BIM is therefore a multidimensional method that involves all phases of the project lifetime and provides a new concept of coordinated communication between designers, builders and other participants in the construction process.

FIRST
STEPS

During this second dimension, all the protocols necessary to define the development of a Basic Project are defined in order to move forward with the design and calculation process.

DOCUMENTS
AND DESIGN

DOCUMENTS
AND DESIGN

This first dimension marks the origin of the project. A solid conception of the idea, together with a feasibility analysis and a quality study of functionalities, are essential for the successful development of the project.

FIRST
STEPS

THREE-DIMENSIONAL
MODELLING

The third dimension improves the ability to understand and visualise the project to be completed, as well as the environment in which it is developed.

THREE-DIMENSIONAL
MODELLING

PLANNING
AND TIMING

This dimension analyses the planning of the project and every one of the works involved in carrying it out.

PLANNING
AND TIMING

COST
CONTROL

In a similar way to time control, it is possible to keep an exhaustive control of the costs of the work.

COST
CONTROL

MAINTENANCE AND
MANAGEMENT

This dimension allows managing the lifetime of a project and the services associated with it. Consequently, through BIM, it is possible to know the real condition.

MAINTENANCE AND
MANAGEMENT

SUSTAINABILITY
ANALYSIS

The sixth dimension simulates the behaviour of energy saving and resource management systems, providing fundamental information for decision-making.

SUSTAINABILITY
ANALYSIS

BIM Phases /
Methodology

1D | FIRST STEPS

PRIMEROS PASOS

This first dimension marks the origin of the project. A solid conception of the idea, together with a feasibility analysis and a quality study of functionalities, are essential for the successful development of the project.

IDEA assists the client during the co-creation process so that, in addition to developing a clear idea that meets the expected requirements, other additional functionalities can be explored to add value to the product.

To this end, we specialise in the use of innovative methodologies, such as Design Thinking, which are aimed at finding creative solutions to create effective strategies that guarantee the product’s success.

2D | DOCUMENTS AND DESIGN

DOCUMENTACIÓN Y DISEÑO

During this second dimension, all the protocols necessary to define the development of a Basic Project are defined in order to move forward with the design and calculation process.

IDEA offers a BIM document drafting service in which the goals and applications the model will have throughout the different project phases are identified in accordance with current standards and based on the requirements of each organisation.

3D | THREE-DIMENSIONAL MODELLING

MODELADO TRIDIMENSIONAL

The third dimension improves the ability to understand and visualise the project to be completed, as well as the environment in which it is developed.

The concept of visualisation is perfectly integrated into BIM, facilitating the selection of the most optimal alternative or as a communication tool between the agents involved, so that all suggestions from technicians and/or users can be incorporated from the earliest design phases.

IDEA combines the advantages of BIM models with other Industry 4.0 trends, such as Augmented Reality or Virtual Reality, to create immersive solutions for top-level visualisations.

4D | PLANNING AND TIMING

PROGRAMACIÓN Y TIEMPOS

This dimension analyses the planning of the project and every one of the works involved in carrying it out.

The introduction of the 3D component provides a clear and concise vision of the foreseen evolution, compared to reality, and makes it possible to coordinate the different main and secondary actors involved in the construction. Consequently, simulation prior to the execution phase facilitates early detection of errors or a much more thorough control throughout the construction process.

IDEA has extensive experience in the application of time control via BIM, which we have implemented particularly in EPC projects. In such projects, by integrating time into the process, the supply chain, terms and site operations have been optimised.

5D | COST CONTROL

CONTROL DE COSTES

In a similar way to time control, it is possible to keep an exhaustive control of the costs of the work.

Technical specifications defined in the previous phases, such as material and object properties, provide the model with the necessary information to extract measurements from the model. Consequently, by incorporating the economic variable, it is possible to obtain a highly accurate cost estimate.

The basis of this fundamental property, which provides information on whether the work is on budget, lies in the corresponding real-time measurement, which immediately produces any BIM model.

6D | SUSTAINABILITY ANALYSIS

ANÁLISIS DE SOSTENIBILIDAD

The sixth dimension simulates the behaviour of energy saving and resource management systems, providing fundamental information for decision-making. As a result, it is possible to select the best techniques and technologies for each project, optimising power consumption and minimising environmental damage.

This property, moreover, if extended to the overall unit, can make an installation meet the highest standards of quality and energy efficiency, in accordance with the fundamentals of Lean Construction, BREEAM, Passivhaus, etc., depending on the type of installation.

7D | MAINTENANCE AND MANAGEMENT

MANTENIMIENTO Y GESTIÓN

This dimension allows managing the lifetime of a project and the services associated with it. Consequently, through BIM, it is possible to know the real condition of the asset or the characteristics and location of all existing elements.

To this end, BIM-based control and maintenance management relies on the combination of all the information generated during the previous phases with other operation and maintenance data. Thus, by centralising all the information concerning the asset, it is possible to achieve comprehensive control.

In this sense, IDEA stands as a reference thanks to the BIM Digital Twin which, using the BIM base as a reference, represents the virtual replica of an object or system that simulates the behaviour of its real counterpart in order to monitor it and analyse its behaviour in certain situations and improve its efficiency. (more info.)

Advantages of BIM methodology

Improvement in Project Data Management

More Life Cycle Control

Increase in Productivity

Cost Reduction

Realistic visualisations and analyses of the project plan

Estimates related to acquisition, resources and tendering

More effective human resource management

Better adjustment of cost factors

Constructability and Optimisation of the construction and assembly sequences

Early detection of problems/incidents which may arise during construction

Improved marketing and presentation of construction methods

Early corrections to save time and money

BIM Services

At IDEA, we create BIM models of the different disciplines (structure, architectures and installations). BIM modelling can be performed at different levels of detail (LOD).

3D modelling can be done from existing 2D plans, from point clouds taken with a terrestrial laser scanner, or by developing the project in its entirety.

BIM modelling services may be required because a 3D BIM model is needed for the facility management of an industry or building, for interference detection in the model itself, to carry out site management, or because a virtual or augmented reality solution is required.

BIM 3D Modelling of metallic, concrete and mixed structures
3D BIM modelling of structures to define the structure as well as its related aspects (stairs, railings, vertical ladders, etc.) in great detail and with 3D connections to obtain a realistic final view at the project stage, thus verifying the suitability and constructability of the design for its subsequent manufacture.

We carry out the following tasks:
- • Drafting of engineering drawings, manufacturing drawings (cutting and assembly) and assembly for metallic structures.
- Drafting of engineering drawings, cast unit drawings (site cast and prefabricated) and reinforcements for concrete structures.
- Real-time collection of all the project information (lists of materials, workshops, assembly stages, concrete volume, formwork surface, pouring stages, certifications…)
We use TEKLA STRUCTURES software.

Piping and Equipment Modelling
3D piping and equipment BIM modelling, using tools to design Industrial Plants, creating virtual models and ‘smart’ drawings that provide a final realistic vision in the project phase, to verify the suitability of the design and constructability for subsequent manufacture and monitoring of future modifications or extensions to the plants.

We use BIM tools such as Cadworx, Open Plant or SmartPlant 3D to perform the following steps in our designs:
- The design tool includes structural steel, equipment, piping, supports, ductwork, process and instrumentation diagrams and design review.
- Automated isometric drawings and material take-offs (MTOs). Adjusting to the needs of our clients.
- Bi-directional links to other software ensure that models and related information are continually updated as changes are made.
Review cycles are sped up through interoperability with software that provides open data models.

We also use our specialised reverse engineering software, which makes it possible to obtain BIM models quickly from point clouds of plants built without existing BIM models. Obtaining in this way As-Built Models.

Architectural Modelling and MEP
IDEA understands architecture for the industrial sector as an engine to inspire and change. Our goal is to meet the needs and interests of our clients by combining ornament and structure.

All our projects are carried out using BIM/REVIT models for building design and construction (MEP), fully integrated with the rest of the disciplines within the same software to detect possible interferences in time and thus resolve any conflicts that may arise during project execution. We offer technical support from design to construction.

We develop parametric models for all disciplines, Architecture, MEP and/or Structure, for any level of definition or development (LOD 200 LOD 300, LOD 350, LOD 400 or LOD500), and while taking into account the application of the model, thus ensuring their usability throughout the lifetime of the building or infrastructure, including final ‘As-built’ model.

Development of the BIM Execution Plan (BEP)
Development of the BIM Execution Plan (BEP), a contractual document, where the main agents and organisations involved throughout the lifetime of the project responsibly undertake to accept the specifications and conditions included.

A BEP aims to clearly define the objectives and scope of the project, specify the BIM applications, phases, and level of development of the BIM model(s). Structure and workflow are designed and responsibilities are assigned.

Finally, we offer the service of planning and developing all types of Virtual Reality (VR) experiences to suit different needs and objectives. Renders, animations and VR/AR. Immersive virtual reality allows the user to visualise the textures, dimensions of scenarios and architectural spaces as if they were real.

BIM+ DIGITAL TWIN | Industry 4.0
IDEA offers its clients the latest technology available for asset management and maintenance. To this end, we focus on BIM and data management in order to obtain the full information and improve decision-making.

Some of the services that IDEA Ingeniería offers are Smart Factory Solutions, Smart Building Solutions, Digital Twin, Business Intelligence or the Development of custom Applications according to our Client’s needs.

Furthermore, IDEA has all the means and experience to carry out environment digitalisation services and industrial inspections using drones and 3D laser scanners, as well as the development of immersive realities or professional additive manufacturing.

BIM, the channel where the relationship between architecture and engineering finally makes sense.
